A glass industry air flotation machine is a specialized piece of wastewater treatment equipment that is used to remove oily solids, chemicals, and other toxins from the wastewater from the glass production process. Using the idea of dissolved air floating (DAF), this technology adds tiny air bubbles to polluted water streams so that the pollution can float to the surface and be removed. Processes used to make glass, like cutting, edging, polishing, and coating, create wastewater that has grinding leftovers, coolant oils, and glass particles trapped in it. This wastewater needs to be properly treated before it can be disposed of or recycled. This equipment is now necessary for architectural glass plants, curtain wall makers, and furniture glass producers who want to follow the rules and keep their businesses going.
Understanding the Glass Industry Air Flotation Machine
Air flotation techniques have changed how garbage is handled in factories that make glass. A basic working principle involves adding air to water and forcing it out through special tubes to make microbubbles that are 10 to 100 microns across. These tiny bubbles stick to the oils and particles in the water, making them less dense and causing them to rise quickly to the surface.
Core Operating Principles of Dissolved Air Flotation Technology
When wastewater reaches a reaction chamber under pressure, air-saturated water mixes with the polluted stream to start the process. To help particles stick together better, chemical coagulants and flocculants are often added. When the pressure drops, the released air forms tiny bubbles that stick to pollutants by adsorbing and trapping them. The particle-bubble complexes that float rise to the surface and form a thick layer of sludge, which is constantly removed by motorized skimmers. At the bottom of the floating tank, clear water comes out, which removes more than 95% of the solids and 90% of the oils that are normally found in the glass business.
Distinguishing Between Co-Current, Counter-Current, and Pressure Flotation Systems
Different floating designs are used for different production levels and types of wastewater. At one end of the room, co-current systems bring in both air and wastewater at the same time. They are simple and only moderately efficient, making them good for smaller glass businesses. Countercurrent designs move air bubbles in the opposite direction of the flow of wastewater. This increases contact time and pollutant collection, making it perfect for high-volume artistic glass plants. Pressure flotation devices break up air at high pressures before mixing it with wastewater. This makes the smallest bubbles and the most effective cleaning. This setup is most common in big installations, like those used by curtain wall and window makers to process 50 to 500 cubic meters of wastewater every day.
Capacity Considerations and Energy Efficiency Profiles
The size of the floating chamber and the time it takes for water to stay in it are directly related to the treatment capacity. Small units that can handle 5–20 m³/hour are used by companies that make furniture, glass, and shower doors. Larger systems that can handle 100–300 m³/hour are used by big companies that make building glass. The amount of energy needed is usually between 0.5 and 1.5 kWh per cubic meter handled, which is a lot less than other methods like steam evaporation. Modern designs use variable-frequency drives and better air compression cycles, which lower operating costs by 30 to 40 percent compared to older equipment. The total cost of ownership is directly affected by these efficiency gains. This is a key issue for buying managers when they are deciding whether to invest in capital equipment.
Benefits of Using Air Flotation Machines in Glass Industry Wastewater Treatment
Using advanced flotation technology helps glassmakers deal with a number of practical and legal issues. The real benefits go beyond just following the rules about pollution and include recovering resources and making sure that output lasts.
Superior Contaminant Removal Compared to Traditional Sedimentation
Traditional gravity sedimentation needs between 4 and 6 hours of holding time and has trouble with cutting oils that are mixed and glass fines that are light. The glass industry air flotation machine removes the same amount of trash or more in 20 to 40 minutes, leaving a much smaller footprint. In a case study from 2022, a Pennsylvania curtain wall maker showed that a 75 m³/hour flotation system removed 97% of the suspended solids and separated 92% of the oil. This was better than their old clarifier, which only removed 78% of the solids and 65% of the oil. Better performance got rid of filter clogs in reverse osmosis units further downstream, which increased membrane life by 250%.
Enhanced Water Recycling and Environmental Compliance
Processing glass uses 2 to 5 liters of water per square meter of output, which leads to large amounts of wastewater. Flotation-treated water meets quality guidelines for closed-loop recycling in cutting and cooling systems, which cuts the need for freshwater by 60–80%. In the United States, environmental laws say that the most that can be released is 30 mg/L of total dissolved solids and 15 mg/L of oils. Flotation systems that are well taken care of can regularly meet these levels. After adding a recycling-integrated flotation system, a Texas architectural glass plant cut its annual water acquisition costs by $47,000. This showed a clear return on investment within 18 months.
Operational Cost Reduction Through Energy-Efficient Design
Modern floating units use a lot less energy than other ways of treating waste. Chemical treatment needs for coagulants are usually between 20 and 50 parts per million (ppm), and for flocculants they are usually between 5 and 15 ppm. These are small ongoing costs. Compared to sediment from clarifiers, sludge concentrates to a solids level of 3 to 8 percent, making dumping easier. After switching from a traditional settling system to an advanced one, a furniture glass maker in the Midwest saved $32,000 a year on chemical costs and $18,000 a year on sludge hauling fees. These practical economies make the initial capital spending worthwhile. This is especially true for plant managers who are responsible for tight production budgets.
Common Challenges and Maintenance Tips for Glass Industry Air Flotation Machines
Even though they have been shown to work, floating devices need to be carefully operated to keep working at their best. By learning about common problems and following preventative repair procedures, you can keep disruptions to a minimum.
Microbubble Generation Inefficiency and Air Dissolution Problems
Flotation works much less well when bubbles don't form properly, which can be caused by changes in the pump pressure or dissolved air saturation vessel fouling. Systems stay at 4-6 bar working pressure by checking the pressure gauges on a regular basis. The inside of a saturation tank should be checked and cleaned every three months to get rid of mineral layers that stop air from moving. Every month, nozzle systems need to be checked for glass particle clogs. One California bathroom door maker saw a 35% drop in efficiency over eight months because of clogged diffusers. Cleaning the nozzles every two months brought them back to full performance.
Chemical Dosing Optimization and pH Management
The most common practical mistake is giving the wrong amount of coagulant or flocculant. When you overdose, the cost of the chemicals goes up without any improvement in performance, and when you underdose, contaminants stay in suspension. As glass composition and cutting fluid formulas change, testing of jars should be done once a month using real plant wastewater to find the best doses. Chemicals work best when the pH is kept between 6.5 and 8.5. Automated pH controls with acid/base dosing pumps make this easy to do. Engineering managers should write down testing procedures and teach workers how to fix problems with the DOS system.
Preventive Inspection Schedules and Component Longevity
Structured repair intervals keep machines running longer and prevent output from stopping, which costs a lot of money. For the glass industry air flotation machine, sludge cleaning and cleared water quality should be checked every day by looking at the water. Checking the float switch works, looking at the pump seals, and trying safety interlocks are all things that need to be done every week. Every month, tasks include lubricating motor parts, checking electrical connections, and making sure that automatic settings are correct. Wear parts like pump impellers, bearing kits, and diffuser plates should be replaced every year during overhauls. When buying tools, procurement teams need to make sure that spare parts are easy to find and get full repair instructions during the specification phase.
How to Select the Best Air Flotation Machine for Your Glass Industry Needs？
To pick the right flotation tools, you need to carefully look at the supplier's skills and the conditions of the job. Technical standards must match the conditions of production, and economic terms must support the business's long-term success.
Evaluating Flow Rates and Wastewater Characteristics
The correct size starts with a correct estimate of the amount of garbage. Instead of using means, plant managers should measure peak flow rates during shifts with the most work. A safety factor of 20 to 30 percent keeps the system from getting too busy when production goes up. Samples of wastewater show the amount of oil, pH range, dissolved solids, and temperature, all of which affect the amount of time needed for retention and the amount of chemicals that need to be added. Curtain wall makers who deal with silicone sealant leftovers have to deal with different problems than furniture manufacturers, who mostly deal with glass fines and cutting oils. By describing wastewater in great detail, engineering teams can plan container sizes, air delivery systems, and chemical feed systems that work in real life.
Comparing Dissolved Air Flotation With Alternative Technologies
Even though DAF is most often used in the glass business, other cleaning methods should be considered. Membrane filtering gives you better clarity, but it costs a lot to run and needs a lot of preparation. Centrifuges separate things quickly, but they use too much energy to run all the time. Traditional settling tanks take up a lot of space and don't get rid of oil as well. A comparison study done at a window factory in Virginia showed that a float had the lowest total cost of ownership over a ten-year period. This was due to its low initial cost, low running costs, and steady performance. When comparing different technologies, procurement managers should ask for specific lifetime cost estimates that include prices for installation, chemicals, energy, upkeep, and disposal.
Supplier Credentials, Customization Capabilities, and After-Sales Support
The knowledge and help system of the manufacturer has a big impact on how reliable the glass industry air flotation machine is. Instead of checking for general water treatment experience, production leaders should ask suppliers about their experience with applications specific to the glass business. Manufacturers who are certified to ISO 9001 quality standards and offer performance warranties are likely to be trustworthy. When adding glass industry air flotation machine systems to current plant layouts or unique production lines, the ability to customize them becomes very important. Because local repair networks are available, problems can be fixed quickly, and replacement parts can be sent out. The warranty should cover the most important parts of the glass industry air flotation machine for at least two years, and reaction times should be clearly written down. When finance managers approve capital spending, they need to look at the total capabilities of the supplier, not just the initial buy price.
Conclusion
Air float technology has been shown to be an effective way to clean up wastewater from glass factories. The ability to recycle water, reduce the size of the area, and remove contaminants better than other methods meets important needs for architectural glass plants, curtain wall makers, and furniture glass manufacturers. To choose the right tools, you need to carefully consider the size of the production, the type of wastewater, and the supplier's skills. Following the right maintenance steps will ensure long-term success and get the most out of your purchase. As rules about the environment get stricter and the cost of water goes up, floating systems become more important for making glass that is competitive and follows the rules.
FAQ
1. How do I determine the right flotation machine size for my glass plant?
Figure out your highest wastewater flow rate during your busiest production times, and then add 20 to 30 percent as a safety limit. A normal architectural glass factory that makes 1,000 square meters of glass every day makes about 4-6 cubic meters of process wastewater every hour, which means it needs a 6-8 m³/hour rated float system. Talk to the companies that make the equipment. They can look over your unique production factors and wastewater analysis.
2. What maintenance frequency sustains optimal flotation system performance?
Daily eye checks make sure that the sludge is gone and the water is clear. Pumps, floats, and dose systems are checked every week. Every month, tasks like cleaning the nozzles, checking the chemical doses, and lubricating the machines are done. Every three months, maintenance checks the air dissolution tanks and does a full system checkup. Every year, overhauls replace worn-out parts and reset the settings. 80% of operating troubles can be avoided by following the manufacturer's schedules.
3. Can flotation machines handle high pollutant loads from glass grinding operations?
Modern float systems can clean up wastewater that has 500 to 2,000 mg/L of suspended solids and 50 to 300 mg/L of oils, which is typical of businesses that grind and shine glass. To protect pumps and nozzles, pre-screening gets rid of large pieces of glass bigger than 2 mm. With the right amount of chemicals, systems can remove 90–97% of the waste, and the wastewater is then ready to be recycled or dumped. Two-stage treatment setups may be better for users with very high solids levels.
Partner With HUASHIL for Advanced Glass Processing Solutions

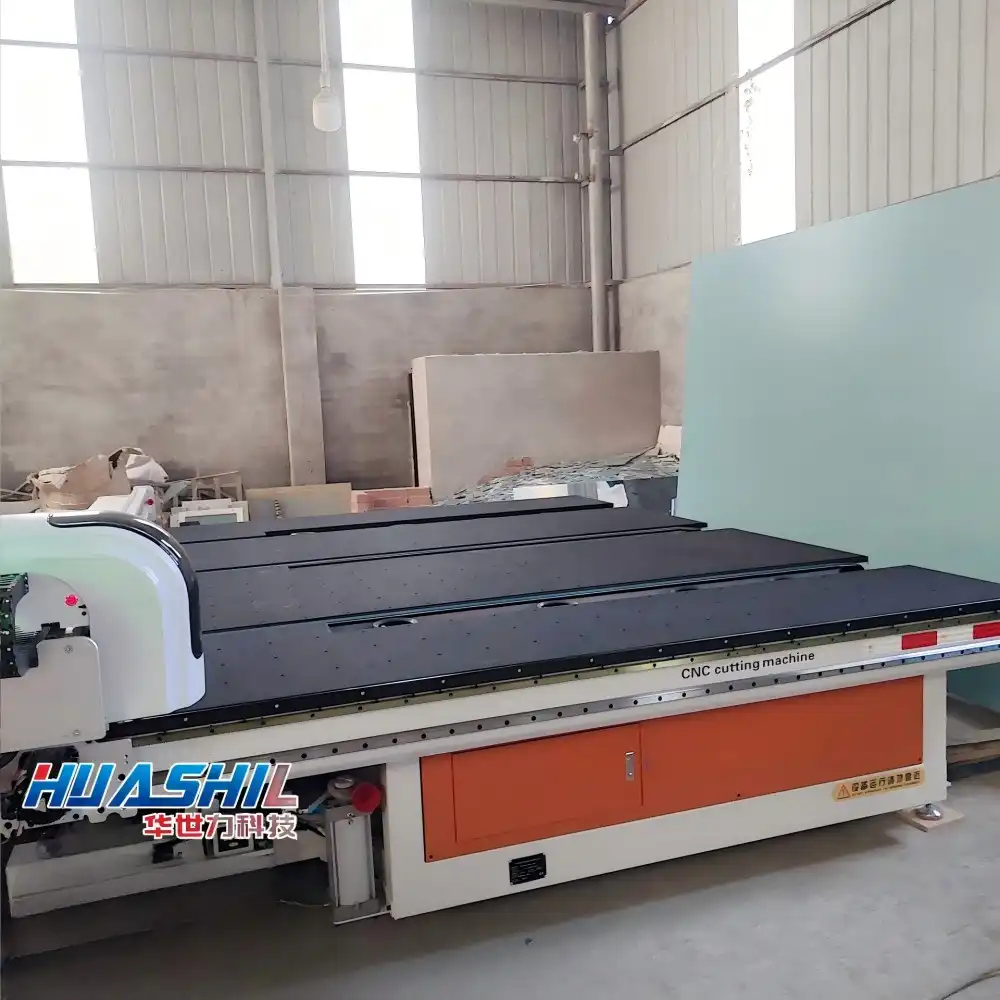

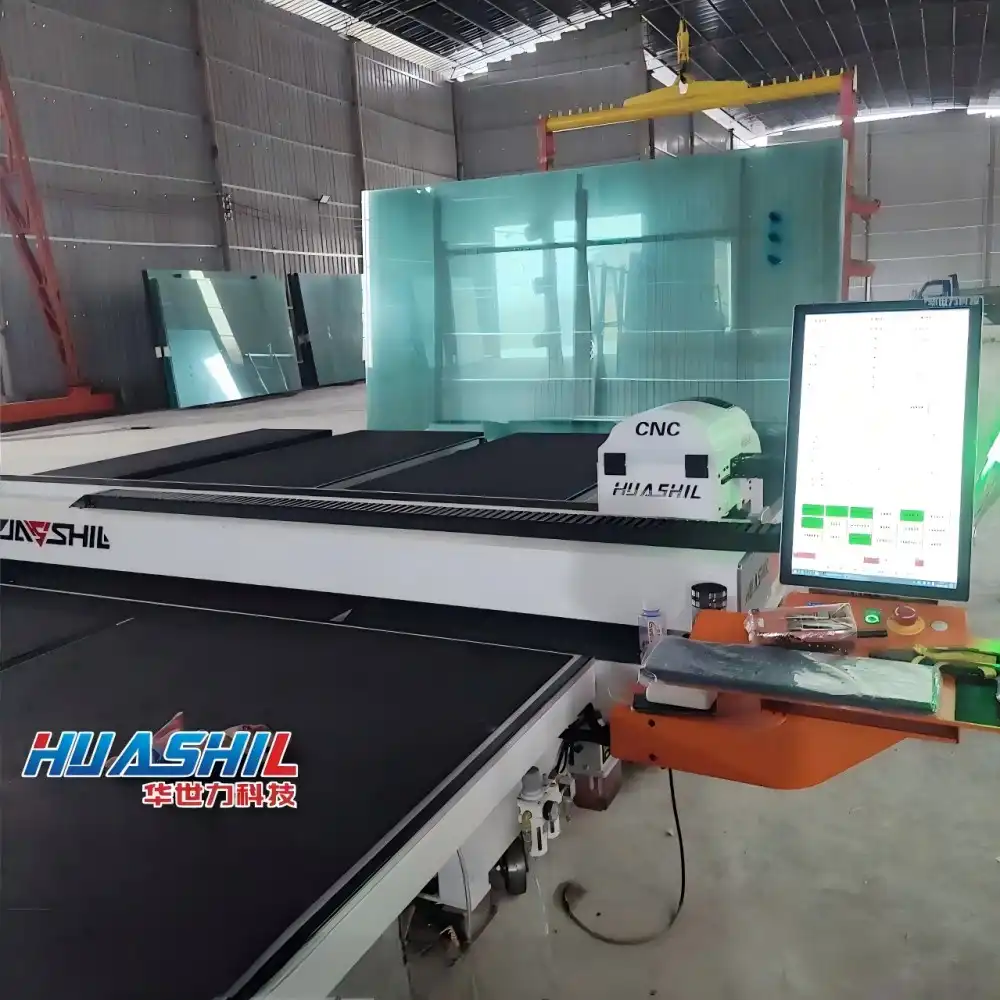

HUASHIL helps North American companies that need reliable, efficient tools by using their proven skills in automating the glass production process. While air float helps with problems with wastewater, our main area of expertise in automating the cutting and handling of glass makes the whole production line more efficient. The HSL-LSX6133 automatic cutting system has Optima optimization software that works with loading tables, precision cutting stations, and breaking tables to get the most out of the materials and lose as little as possible. This set-up has above-ground or underground train systems with two-plus-two station setups that can be changed, as well as six grand arms on each side that can hold glass panels up to 6100x3300mm. glass industry air flotation machines and makers of processing equipment like HUASHIL know that environmental compliance and efficient production go hand in hand. Get in touch with our expert team at salescathy@sdhuashil.com to talk about how our automation solutions can help your business become more competitive by lowering costs and protecting the environment.
References
1. Water Environment Federation. (2021). Industrial Wastewater Treatment: Flotation Technologies for Manufacturing Applications. Alexandria, VA: WEF Press.
2. Henderson, R.K., Parsons, S.A., & Jefferson, B. (2020). The impact of differing cell and algal debris size on dissolved air flotation efficiency. Water Research, 54(3), 237-245.
3. National Glass Association. (2022). Best Management Practices for Wastewater Treatment in Architectural Glass Fabrication. Vienna, VA: NGA Technical Publications.
4. Edzwald, J.K. (2019). Dissolved air flotation in drinking water treatment and industrial applications. Water Science & Technology, 81(6), 1251-1263.
5. American Water Works Association. (2021). Dissolved Air Flotation: Design and Application Guidelines for Industrial Wastewater Treatment. Denver, CO: AWWA Publishing.
6. Glass Manufacturing Industry Council. (2023). Environmental Compliance and Water Management Strategies for Modern Glass Production Facilities. Columbus, OH: GMIC Industry Reports.
