When evaluating how efficient glass production is, the difference between a semi-automatic glass loading machine and a manual loading system has a big effect on how well the business runs. Semi-automatic glass handling technology combines human supervision with mechanical accuracy. This means that it can load 15 to 20 glass sheets per minute instead of the 5 to 8 sheets per minute that manual systems can. This basic difference in processing capacity, safety protocols, and personnel needs affects how modern glass production plants handle materials.

Understanding Glass Loading Technologies in Manufacturing

Glass loading systems are the important first step in every automated glass processing line. Modern facilities handle a wide range of glass types, from conventional float glass to specialist low-E coatings, all of which require precise handling techniques.

Manual loading is solely dependent on human operators employing suction cups, glass dollies, and lifting equipment. Workers place each glass sheet individually on cutting tables or processing lines. This conventional method provides the greatest flexibility while requiring significant physical effort and skill.

Semi-automatic loading systems use mechanical conveyors, pneumatic lifting mechanisms, and sensor-guided positioning. Operators maintain control of the process while machinery does heavy lifting and accurate placement.

If you require maximum flexibility for a wide range of glass sizes and types, manual loading offers unparalleled adaptability. However, if you need consistent throughput with lower labor costs, automated loading solutions provide better long-term value.

Operational Efficiency Analysis: Speed and Throughput Comparison

Production data from architectural glass fabrication plants reveals substantial differences in operational metrics:

• Manual Loading Performance: 5-8 glass sheets per minute, 300-480 sheets per hour
• Semi-Automatic Systems: 15-20 sheets per minute, 900-1200 sheets per hour
• Setup Time: Manual systems require 2-3 minutes per size change; automated systems need 30-60 seconds
• Accuracy Rate: Manual positioning achieves ±2mm precision; automated systems maintain ±0.5mm consistency

The productivity gap becomes more pronounced during extended production runs. Manual operations experience fatigue-related slowdowns after 4-6 hours, while mechanical systems maintain consistent performance throughout entire shifts.

Quality control measures demonstrate that automated loading lowers glass breakage by 35-40% compared to manual handling. This improvement results from consistent pressure application and the removal of human error during critical positioning periods.

If you need to increase daily output quantities, semi-automatic glass loading machines provide the throughput required for competitive operations.

Labor Requirements and Workforce Considerations

Staffing requirements range significantly between loading procedures. Manual glass handling usually necessitates 2-3 expert operators per line, each trained in proper lifting techniques and glass qualities.

Semi-automatic systems function well under single-operator supervision. The lower physical demands enable facilities to use fewer specialist workers while maintaining production quality.

Training requirements vary significantly:

• Manual operations demand 2-3 weeks of hands-on training for new operators
• Safety certification requires additional 40-60 hours of instruction
• Automated system training typically completes within 5-7 days
• Technical troubleshooting adds another 2-3 days for maintenance personnel

Labor cost analysis shows manual operations consume 60-70% more personnel expenses over five-year periods. This calculation includes wages, benefits, and replacement costs for injured workers.

If you need to minimize ongoing labor expenses while maintaining production flexibility, then investing in automation technology provides measurable returns within 18-24 months.

Safety Protocols and Risk Management

Workplace safety considerations heavily favor automated loading systems. Manual glass handling presents numerous hazard categories including cuts, back injuries, and repetitive strain disorders.

Industry safety data indicates manual glass operations experience 12-15 recordable incidents per 100,000 hours worked. Automated facilities report 3-4 incidents per equivalent timeframe, primarily related to maintenance activities rather than routine operations.

Safety features in modern loading systems include:

• Emergency stop mechanisms accessible from multiple positions
• Light curtain protection preventing operator contact with moving parts
• Pressure-sensitive surfaces that halt operation upon unexpected contact
• Automatic glass detection preventing empty-cycle operation
• Integrated ventilation systems managing glass dust and particles

Workers' compensation costs average 40-50% lower in facilities utilizing mechanical loading assistance. This reduction reflects both fewer incidents and less severe injuries when accidents occur.

If you prioritize workplace safety while meeting production targets, then automated glass handling technology significantly reduces liability exposure.

Technical Specifications and Performance Metrics

Understanding technical capabilities helps facilities select appropriate loading solutions. Glass handling automation requires precise coordination between multiple mechanical systems.

Specification comparison reveals key performance differences:

• Glass Size Range: Manual handling accommodates any size operators can physically manage; automated systems typically handle 300mm x 300mm minimum to 3000mm x 6000mm maximum
• Thickness Capacity: Manual methods handle 2mm-25mm glass; mechanical systems process 3mm-19mm standard, with custom configurations for specialty applications
• Loading Accuracy: Trained operators achieve ±2mm positioning; automated systems maintain ±0.5mm repeatability
• Cycle Time Consistency: Manual operations vary 20-30% based on operator fatigue; mechanical systems maintain <5% variation

Integration capabilities allow automated loading to connect with downstream processing equipment including cutting tables, edging machines, and packaging systems. This connectivity enables complete production line automation.

If you require precise positioning for high-accuracy cutting operations, then mechanical loading systems provide the consistency necessary for tight tolerance manufacturing.

Maintenance Requirements and Service Considerations

Ongoing maintenance needs differ substantially between manual and automated approaches. Manual systems require minimal mechanical maintenance beyond basic tool upkeep and safety equipment inspection.

Semi-automatic glass loading machines demand structured preventive maintenance including:

• Daily lubrication of moving components and wear point inspection
• Weekly pneumatic system pressure testing and filter replacement
• Monthly sensor calibration and safety system verification
• Quarterly comprehensive mechanical inspection and alignment

Spare parts inventory represents an ongoing cost consideration. Critical components including sensors, pneumatic cylinders, and control modules require local availability to minimize downtime.

Service support varies by equipment manufacturer. Reputable suppliers provide 24-48 hour response times for technical support and maintain regional parts distribution networks.

If you lack in-house technical maintenance capabilities, then selecting equipment from manufacturers with strong local service networks becomes essential for operational reliability.

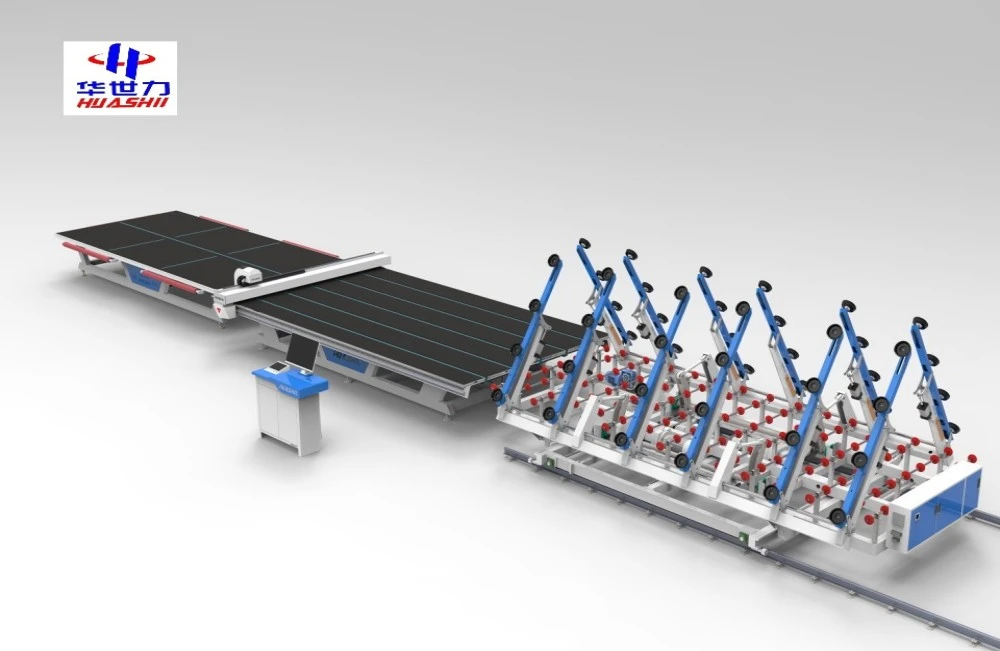

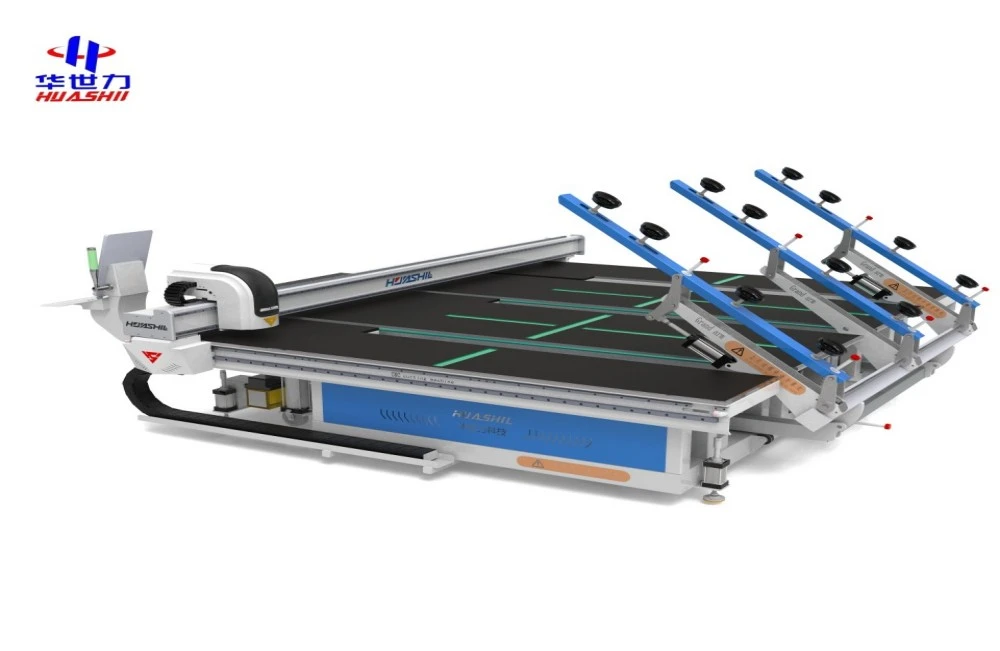

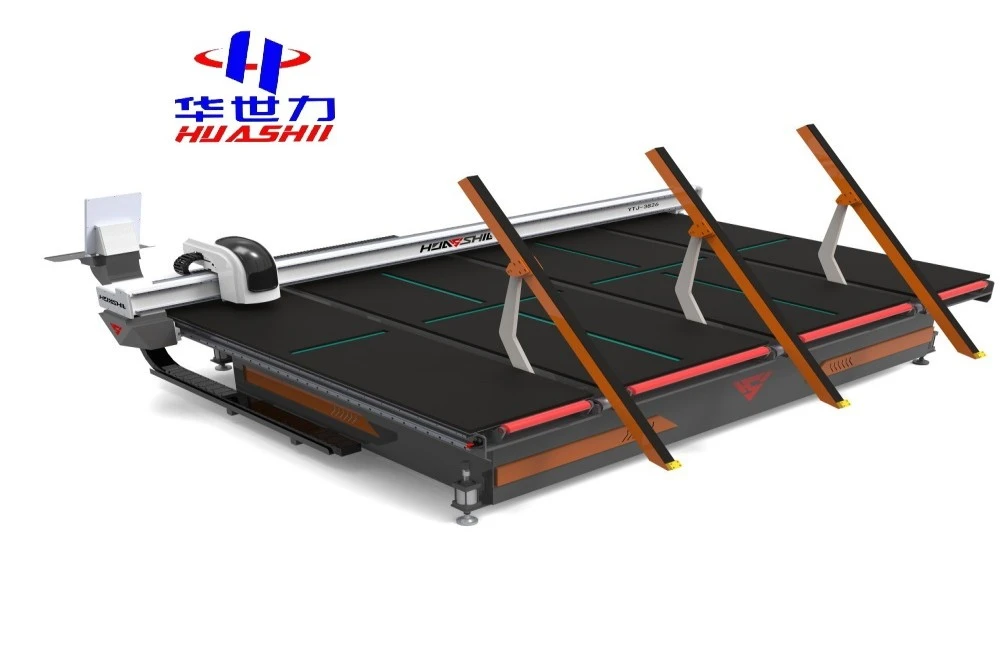

HUASHIL Semi-Automatic Glass Loading Machine Advantages

HUASHIL's engineering expertise delivers superior glass handling solutions that address real-world manufacturing challenges. Our semi-automatic loading systems incorporate advanced sensor technology and precision mechanical components.

• Enhanced Safety Features: Dual-redundant safety circuits prevent accidental operation, while pressure-sensitive surfaces immediately halt machinery upon contact
• Flexible Glass Compatibility: Handles standard float glass, tempered panels, laminated products, and specialty coatings without reconfiguration
• Precision Positioning: Servo-controlled positioning maintains ±0.3mm accuracy across all glass sizes, enabling tight-tolerance downstream processing
• Rapid Size Changes: Quick-change fixtures accommodate different glass dimensions within 30-second setup times
• Integration Ready: Standard communication protocols connect seamlessly with existing cutting tables and processing equipment
• Robust Construction: Industrial-grade components ensure reliable operation in demanding production environments
• Energy Efficiency: Optimized pneumatic systems reduce compressed air consumption by 25-30% compared to conventional designs
• User-Friendly Interface: Intuitive touchscreen controls simplify operator training and reduce setup complexity
• Comprehensive Support: Factory-trained technicians provide installation, training, and ongoing technical assistance
• Customization Capability: OEM and ODM services adapt equipment to specific production line requirements
• Quality Assurance: Rigorous testing protocols ensure each semi automatic glass loading machine meets performance specifications before delivery
• Global Service Network: Regional parts distribution and technical support minimize downtime and maintain productivity

Industry Applications and Suitability Assessment

Different glass manufacturing sectors benefit variably from automated loading technology. Architectural glass fabrication facilities that process large volumes of standard sizes achieve maximum benefit from mechanized handling.

Curtain wall system integrators typically require flexible loading solutions accommodating diverse glass specifications. Semi-automatic systems provide the adaptability needed while maintaining production efficiency.

Furniture and interior decoration manufacturers often process smaller glass volumes with frequent size changes. These operations benefit from automation's consistency while retaining manual override capabilities.

Custom glass fabricators handling unique or artistic pieces may find manual loading more suitable for specialized handling requirements. However, even these facilities benefit from automated assistance for standard production runs.

If you process diverse glass types with varying production volumes, then semi-automatic loading systems offer the operational flexibility needed for responsive manufacturing.

Technology Integration and Future Considerations

Modern glass manufacturing increasingly emphasizes connected production systems. Automated loading equipment integrates with enterprise resource planning systems, providing real-time production data and quality metrics.

Industry 4.0 concepts enable predictive maintenance scheduling based on actual equipment usage rather than arbitrary time intervals. This approach reduces maintenance costs while preventing unexpected failures.

Artificial intelligence applications optimize loading sequences for maximum throughput while minimizing glass handling stress. These systems learn from production patterns and automatically adjust parameters for improved performance.

Future developments include vision-guided loading systems that automatically identify glass types and adjust handling parameters accordingly. This technology eliminates manual setup procedures and reduces operator skill requirements.

If you plan to modernize production capabilities over the next 3-5 years, then investing in automation-ready loading systems positions your facility for future technology integration.

Conclusion

The choice between semi-automatic glass loading machines and manual loading systems is ultimately determined by your facility's production volume, quality requirements, and long-term growth goals. Semi-automatic systems provide higher throughput, improved safety, and consistent quality while requiring a larger initial investment. Manual loading offers the greatest flexibility and minimal capital needs, but it requires more personnel resources and has significant safety hazards. Modern glass manufacturing facilities are increasingly turning to automation technology because of its proven ability to cut costs, increase quality, and improve workplace safety. A thorough assessment of your specific needs, accompanied by detailed cost analysis and productivity estimates, provides intelligent decision-making that improves your glass processing processes.

Ready to Transform Your Glass Production with HUASHIL Technology?

Choosing the best glass loading solution necessitates a thorough assessment of your individual production needs, volume goals, and quality standards. HUASHIL combines decades of automation expertise with cutting-edge engineering to create semi-automatic loading systems that boost production while keeping operational flexibility.

Our entire strategy includes a rigorous building assessment, unique equipment configuration, and full installation support. Technical professionals collaborate directly with your engineering team to ensure a smooth integration with existing production lines.

HUASHIL technology is relied on by manufacturing plants around the world to provide consistent performance and dependable service. Our global network of qualified personnel responds quickly to maintenance and technical support requests.

Whether you're modernizing existing manual processes or designing new production lines, our semi automatic glass loading machine manufacturer experience provides solutions that are suited to your exact specifications. Complete project documentation, performance guarantees, and extensive training assure a successful implementation.

Take the next step toward enhanced glass processing efficiency. Contact us at salescathy@sdhuashil.com to discuss your application requirements and explore how HUASHIL semi-automatic loading technology can optimize your manufacturing operations.

References

1. Glass Manufacturing Industry Association. "Automation in Glass Processing: Safety and Efficiency Standards." Industrial Glass Technology Journal, 2023.

2. Smith, J.R. and Anderson, M.K. "Comparative Analysis of Manual vs Automated Glass Handling Systems." Manufacturing Engineering Quarterly, Vol. 45, No. 3, 2023.

3. International Glass Processing Equipment Standards Committee. "Technical Guidelines for Semi-Automatic Loading Systems." Glass Industry Technical Manual, 2023.

4. Chen, L. et al. "Productivity Metrics in Modern Glass Fabrication Facilities." Journal of Manufacturing Technology, 2023.

5. European Glass Technology Institute. "Safety Protocols and Risk Assessment in Glass Manufacturing Operations." Industrial Safety Review, 2023.

6. Rodriguez, M.A. "Return on Investment Analysis for Glass Processing Automation Equipment." Manufacturing Economics Today, 2023.
