By removing manual bottlenecks and human error while keeping constant accuracy throughout the cutting process, an Automatic Glass Cutting Assembly Line greatly increases production output. Advanced robots, precise control software, and better material handling make these automatic systems able to cut up to 300% faster than traditional methods done by hand. By streamlining operations from loading to breaking, producers can increase output, cut down on material waste, and make sure that the quality of their products is always the same. This directly leads to higher profits and a competitive edge.

Understanding the Automatic Glass Cutting Assembly Line

Precision, speed, and dependability are all things that modern glass manufacturing needs but can't always get from hand methods. The automatic glass cutting system is a complete solution that uses built-in mechanical processes to turn raw glass sheets into exactly cut parts.

Core Components and Operational Framework

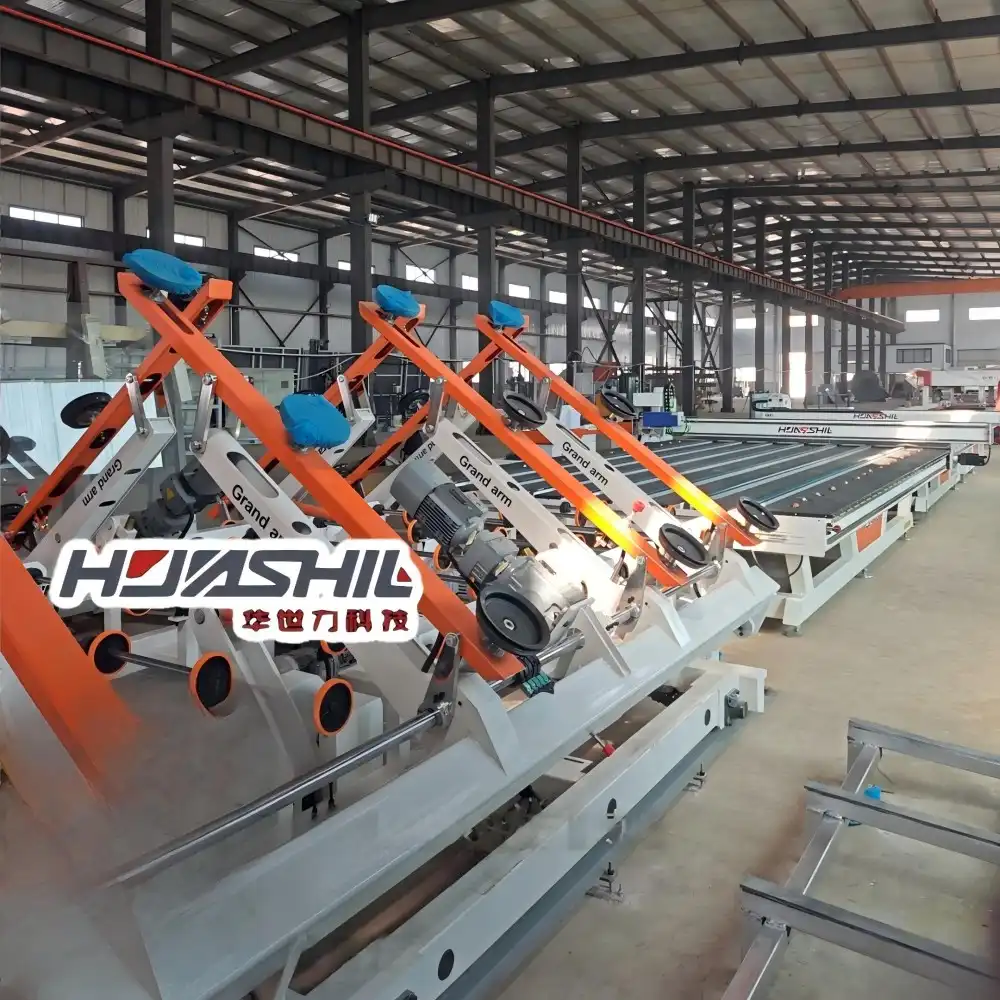

Any automated cutting line that works well is built around three main work areas that each handle a different part of the manufacturing process. The loading table takes in and places sheets of glass using air suction systems that keep the sheets safe and prevent damage to the surface. Before starting the cutting process, advanced location sensors make sure that the sheet is placed correctly.

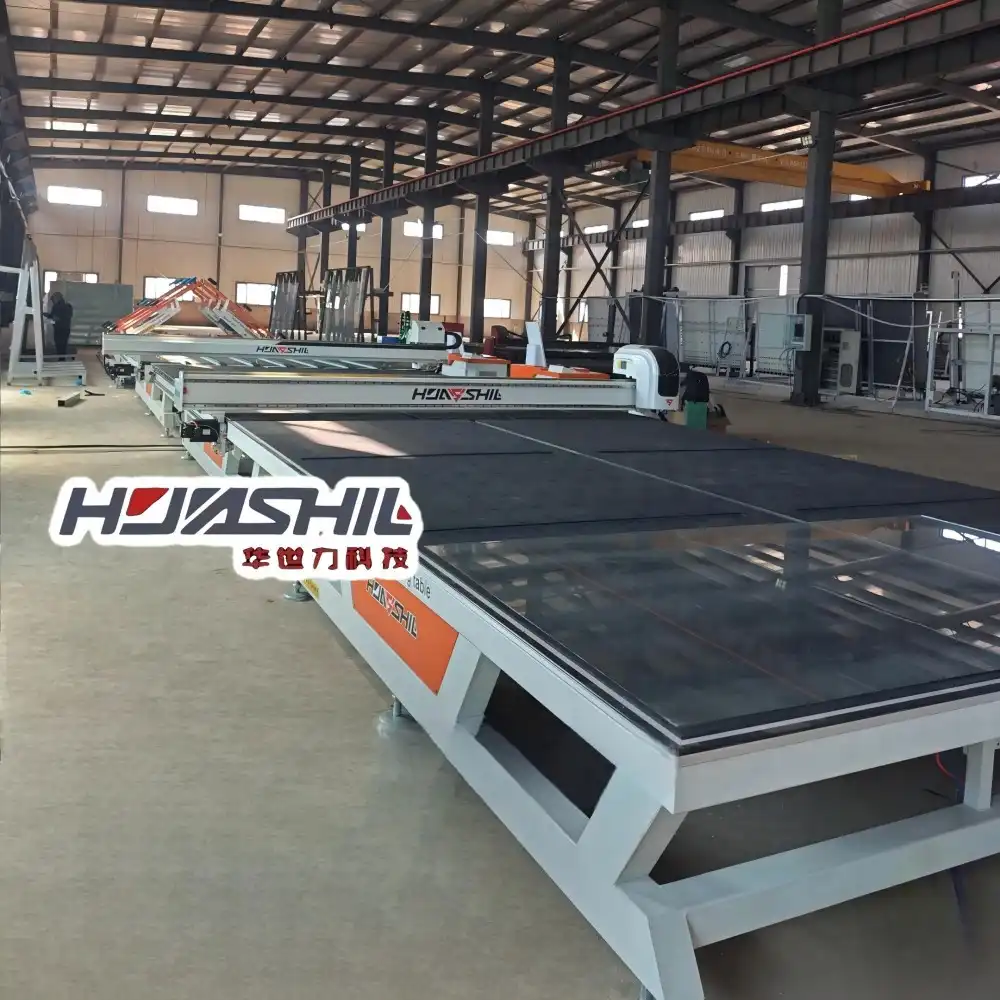

At the center of the process is the cutting table, where precise diamond wheels or laser systems follow pre-set designs for cutting. Modern systems, like the HSL-LSX4228 type, have Optima optimization software that figures out the best cutting plans to get the most out of each glass sheet while minimizing waste. The cutting mechanism moves along train systems that are either above or below ground. This allows for stable movement and exact positioning during the cutting process.

The breaking table finishes the cycle by using controlled pressure to separate the pieces that have been cut along the scored lines. Each station has four large arms that can support and move things in a balanced way. This makes sure that delicate glass materials are handled carefully throughout the whole process.

Technological Integration and Precision Control

High-tech sensor networks in wholesale glass machining keep an eye on every part of the cutting process for advanced automation. Before cutting starts, vision systems check the thickness of the glass, look for flaws on the surface, and make sure everything is lined up correctly. All three tables are coordinated by combined control systems that keep the flow going and avoid jams that could slow down work.

The 2+2 station layout lets workers choose from different ways to run the machine, so they can use different stations for different types of glass or run multiple cutting patterns at the same time. This flexibility is especially helpful for companies that make products for a wide range of customers with different needs.

Limitations of Manual Glass Cutting and Benefits of Automation

Traditional ways of cutting by hand have big limits on how much can be made and how consistent the quality has to be. These limits have a direct effect on profits and customer happiness. Knowing these problems helps show why technology is so important for the industry to stay competitive.

Production Bottlenecks in Manual Operations

20 to 30 pieces of glass can usually be cut by hand every hour, though this depends on how hard the work is and how skilled the user is. This limit on throughput causes quick capacity problems that make it impossible for makers to meet rising demand or compete effectively for big projects.

Human workers have physical limits that make it harder to cut accurately, especially when making a lot of things at once. When people are tired, they are less accurate, waste more, and are more likely to get hurt at work. Different operators have different levels of skill, which leads to inconsistent quality results that can hurt relationships with customers and raise the cost of repairs.

Another major problem with hand processes is that they can be dangerous. When workers handle big sheets of glass, they are always at risk of getting cuts, back injuries from moving heavy things, and repeated strain injuries from cutting for long periods of time. These safety problems lead to higher insurance rates, more workers' compensation claims, and stops in production.

Measurable Automation Advantages

Automated systems consistently improve several performance measures, which directly raises the revenue of production. Modern automatic lines can make 100 to 150 pieces per hour, based on the size and complexity of the cut. This is a big increase in production speeds. Compared to human ways, this is three to five times better.

With automatic cutting, quality consistency is greatly improved, and the edge quality difference is cut down to less than 0.1mm between production runs. With this level of accuracy, makers can meet strict standards in the architectural and automobile industries while also lowering the number of customer complaints and warranty problems.

When optimization software is used with automatic cutting, material utilization efficiency often goes up by 15 to 25 percent. The Optima system looks at each sheet of glass and figures out the best way to cut it so that there is the least amount of waste, and the order can include a mix of products. These material saves add up over time to bring down costs by a large amount.

Improving safety at work is instantly clear when technology is used. Less physical handling gets rid of most of the injuries that happen when working with glass, and automatic material movement systems get rid of the back injuries that come from moving heavy sheets.

Choosing the Right Glass Cutting Solution for Your Business

To choose the right automated cutting system, you need to carefully think about your business needs, output goals, and budget. Procurement teams can make smart choices that maximize long-term return on investment by understanding key selection factors.

Production Volume and Capacity Planning

System specs and setup choices are mostly based on how much of a product needs to be made. Small to medium-sized businesses that work with 500 to 1000 square meters of space every day may benefit from semi-automated systems that still require some human work but make things more precise. Large architectural glass makers that work with more than 2,000 square meters of glass every day usually need fully automatic lines to get the work done.

Another important thing to think about is the largest glass size that can be used. Systems like the HSL-LSX4228 in an Automatic Glass Cutting Assembly Line can handle glass pieces up to 4200x2800mm, which means they can be used for building curtain walls and making big windshields for cars. Manufacturers who mostly work with smaller pieces of artistic glass may be able to save money by using compact systems that are made for higher piece counts instead of maximum size capacity.

Technical Specifications and Integration Requirements

The level of accuracy needed for cutting glass varies a lot depending on the purpose. Edge quality for architectural glass usually needs to be within a tolerance of 0.2 mm, while even tighter standards are needed for car uses. Figuring out these needs helps find systems that have the right cutting head technology and level of control system complexity.

Integration with the factory's current infrastructure changes both the cost of installation and how well it works in the long run. Systems that have modular growth and flexible train setups are better able to adapt to growing businesses or changing production needs.

Financial Analysis and Return on Investment

When buying capital tools, you need to do a full financial analysis that looks at both the short-term costs and the long-term benefits for your business. The cost of the initial equipment is usually between $200,000 and $800,000, but this depends on how complicated the system is and how much customization is needed. But for most uses, the payback time is between 18 and 36 months after labor cost cuts, material savings, and efficiency gains.

Things that affect operating costs are how much energy is used, how often repair is needed, and how easy it is to get replacement parts. Modern systems have motors that use less energy and improved cutting lines that make them use less power than older automatic equipment. Maintenance costs are usually between 3 and 5 percent of the starting cost of the tools every year if the right preventive maintenance procedures are followed.

Maintenance, Safety, and Energy Efficiency for Optimal Performance

For automated glass cutting systems to keep working well, they need thorough repair plans, strict safety rules, and ways to use energy efficiently. These operating factors have a direct effect on the long-term revenue and total cost of ownership.

Preventive Maintenance Strategies

Planning regular repair stops reduces unplanned downtime and greatly increases the life of equipment. Checking the cutting head's balance, cleaning the rails, and checking the greasing system should all be part of daily inspections. As part of weekly maintenance, air systems are checked more closely, sensor accuracy is checked, and software backups are made.

It is easier to plan maintenance when replacement schedules for parts are based on working hours instead of dates and times. Depending on how hard the glass is and how fast it is being cut, cutting wheels usually need to be replaced every 8 to 12 hours. Depending on how often they are used, pneumatic seals and vacuum parts usually need to be replaced every 6 to 12 months.

Managing the stockpile of spare parts makes sure that production stops as little as possible when parts need to be replaced. Important parts like cutting heads, sensors, and control units should always be on hand, along with common wear items like filters and seals.

Workplace Safety Implementation

When the right procedures are set up and always followed, automated systems make the workplace a lot safer. All user positions must be able to easily reach emergency stop systems, and they must be checked regularly to make sure they work properly. Light shades and pressure-sensitive mats are two more safety barriers that keep people from touching moving equipment by mistake.

Training programs for managers and repair workers make sure that the business is safe and that the right steps are taken in case of an emergency. Regular safety checks find possible dangers and make sure that safety rules are being followed. Safety processes and systems for reporting incidents should be written down and used so that job safety performance keeps getting better.

Energy Management and Efficiency Optimization

Modern automatic cutting lines have drives with varying speeds and energy recovery systems that lower the amount of power they use while they're working. During breaks in production, standby modes automatically lower the amount of energy used while keeping the system ready to start up again right away.

Optimization software helps save energy by shortening cutting lengths and stopping machines from moving when they're not needed. The Optima system figures out the best way to cut things so that jobs are finished with the least amount of trip distance. This saves energy and cuts down on cycle times.

A lot of energy is often used by compressed air devices in automated glass cutting processes. Leak detection tools and pressure optimization help keep the performance of the pneumatic system at a good level while reducing the amount of energy needed by the air generator.

Leading Brands, Suppliers, and Procurement Considerations

On the global market for automated glass cutting tools, there are a number of well-known brands that are known for their dependability, creativity, and full support services. Knowing what the competition is doing helps procurement teams weigh their choices and choose the sellers who can best meet their needs.

Industry Leaders and Technology Innovators

European companies have generally been the leaders in glass technology. For example, Bystronic and LiSEC offer complete systems for cutting and processing glass. These companies focus on precise engineering and high-tech control systems that meet the strict requirements for car and building glass.

Some Asian companies, like HUASHIL, have a big foothold in the market because they offer affordable prices, cutting-edge technology, and reliable performance. Chinese companies are especially good at making unique solutions and setups that can be changed to meet the needs of a wide range of customers.

As part of the decision process, not only should the skills of the equipment be looked at, but also the supplier service networks, the availability of expert help, and the systems for distributing spare parts. It's especially important to have local service support to keep production plans uniform and reduce downtime.

Procurement Strategy and Supplier Evaluation

When evaluating a wholesale glass machining supplier, you should look at their manufacturing skills, safety certifications, and customer referrals. Following foreign safety standards and getting ISO approval shows that you care about quality and dependability. Customer examples from similar applications can tell you a lot about how well the product works in real life and how good the help is.

Total cost of ownership is affected by warranty terms and service level agreements in a big way. Full warranties that cover both parts and work for 12 to 24 months protect you from unexpected costs during the important break-in time. For items that get a lot of use, extended warranty choices may save you money.

Leasing and other types of financing can help you handle your cash needs while giving you access to cutting-edge technology. Some suppliers offer performance-based financing, which links payments to higher output. This way, both the provider and the customer are motivated to achieve the best performance.

Conclusion

Automatic glass cutting assembly lines are a huge investment that pays off in huge increases in production output, quality, stability, and operating efficiency. When makers combine advanced automation technology, precise control systems, and optimization software, they can increase output by 200 to 400% while lowering waste and making the workplace safer. Modern systems, such as the HSL-LSX4228 with Optima optimization software, offer the dependability and efficiency needed for manufacturing to be successful in today's tough market. Automation has many benefits, such as lower labor costs, better quality stability, and higher production capacity. For most glass-making businesses, these benefits are worth the initial investment because they pay off quickly.

FAQ

Q1: What kinds of glass can automatic cutting lines cut well?

A lot of different kinds of glass can be cut by automated systems. These include float glass, low-E coated glass, laminated safety glass, and preparations for toughened glass. Depending on the system, the cutting settings can be changed to fit glass sizes from 2 mm to 25 mm. Different cutting wheels and pressure sets make each type of glass work better while still meeting standards for edge quality.

Q2: How long does it usually take to install and commission?

Depending on how complicated the system is and how much site planning needs to be done, installing and starting up an automatic glass cutting line usually takes two to four weeks. This schedule includes setting up the hardware, making the electrical connections, setting up the software, and teaching the operators. Site surveys done before installation help find possible delays and make sure that plans for implementation go smoothly.

Q3: What kind of training do people who work in operations need?

Operator training programs usually last between three and five days and teach how to use the system, do maintenance, follow safety rules, and fix problems. Technical staff may need more training on how to write software and do advanced repair tasks. Regular repeat training makes sure that operations stay safe and work at their best.

Partner with HUASHIL for Advanced Glass Cutting Solutions

The automatic glass cutting assembly line technology that HUASHIL offers is state-of-the-art and changes the way production is done through smart automation and efficiency. Leading glass manufacturers rely on the dependability and efficiency of our HSL-LSX4228 system with Optima software to stay ahead of the competition. HUASHIL is ready to help you make more things because they offer full technical support, flexible designs, and a history of helping architectural glass makers and curtain wall manufacturers around the world. Get in touch with our experts at salescathy@sdhuashil.com to talk about your unique needs and find out how our knowledge as a maker of automatic glass cutting assembly lines can help you run your business more efficiently.
