An Air Float Glass Loading Table represents a breakthrough in glass handling technology that utilises compressed air to create a frictionless surface for effortless glass movement. This innovative system employs multiple air nozzles distributed across the table surface, generating an air cushion that literally floats glass panels above the table. The working principle eliminates direct contact between glass and table surface, preventing scratches and damage while enabling smooth transportation of even the heaviest glass sheets with minimal force.

Understanding the Air Float Glass Loading Table

Handling materials needs to be precise, quick, and safe in today's glass production. The Air Float Glass Loading Table meets these needs with its special air float technology, which makes it different from regular roller-based or belt conveyor systems that need to touch the glass surfaces physically.

Core Components and Architecture

The complex method for delivering air is what makes air float technology work. Several carefully designed air tubes spread the same amount of air pressure over the whole table area. These tubes are linked to a central air compressor system that keeps the pressure steady, usually between 0.3 and 0.6 MPa, based on the size and weight of the glass.

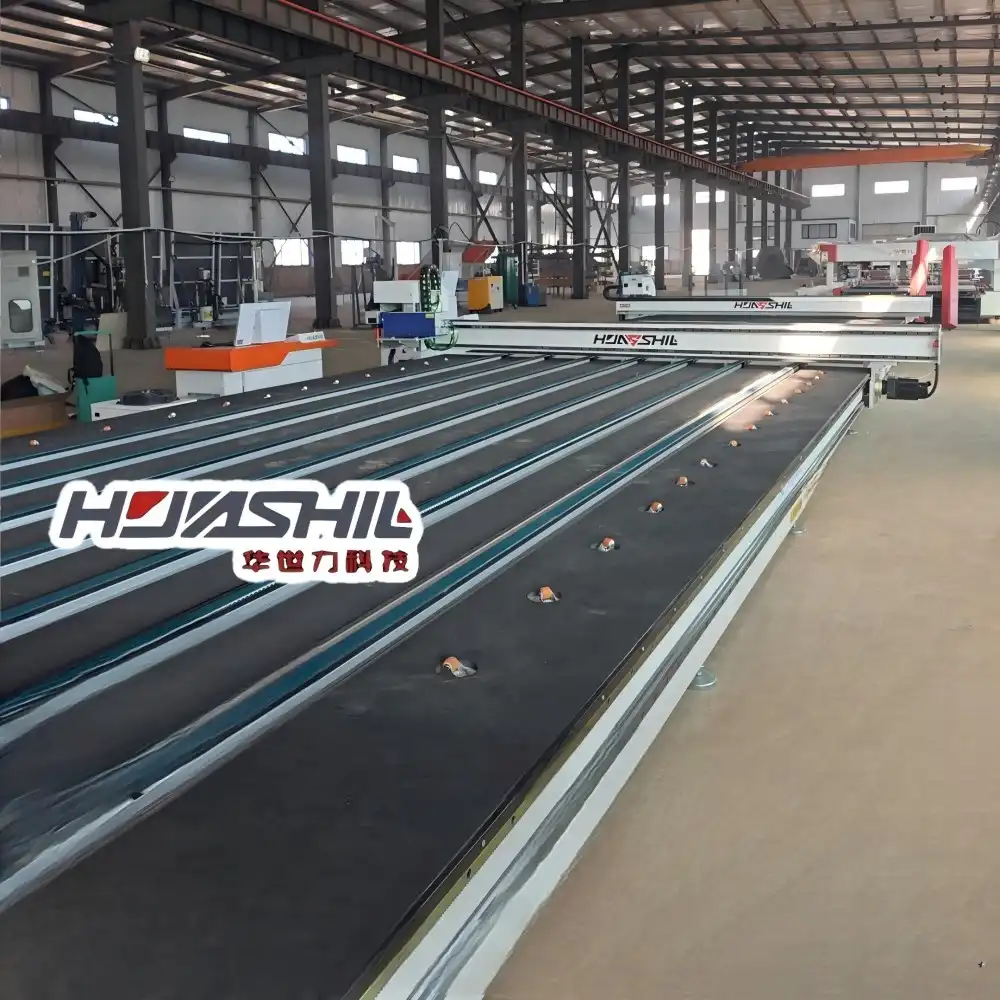

There are carefully placed air openings on the table surface that spread the compressed air out evenly. This pattern of spread makes sure that the glass floats steadily, no matter what size or shape it is. Control interfaces have digital displays and automatic feedback systems that let workers change the air pressure and keep an eye on how the system is working.

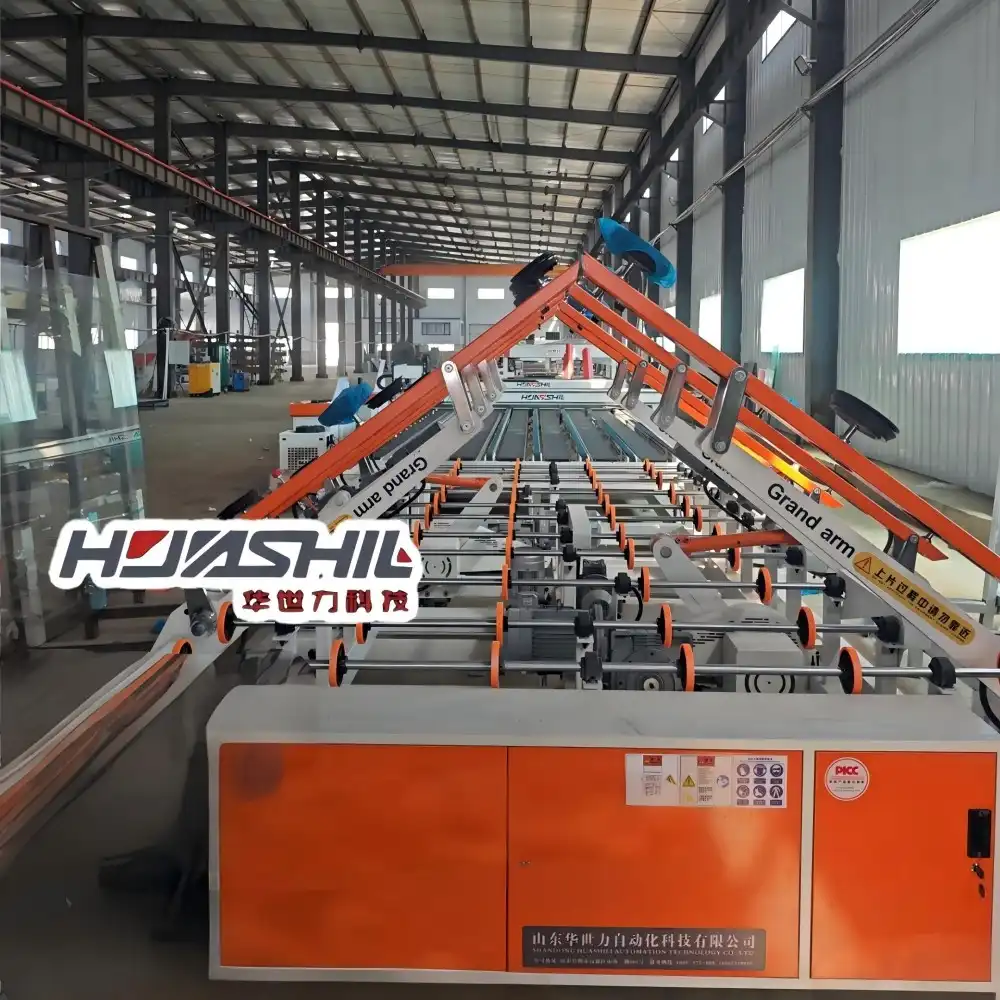

Revolutionary Three-Arm Automatic Loading System

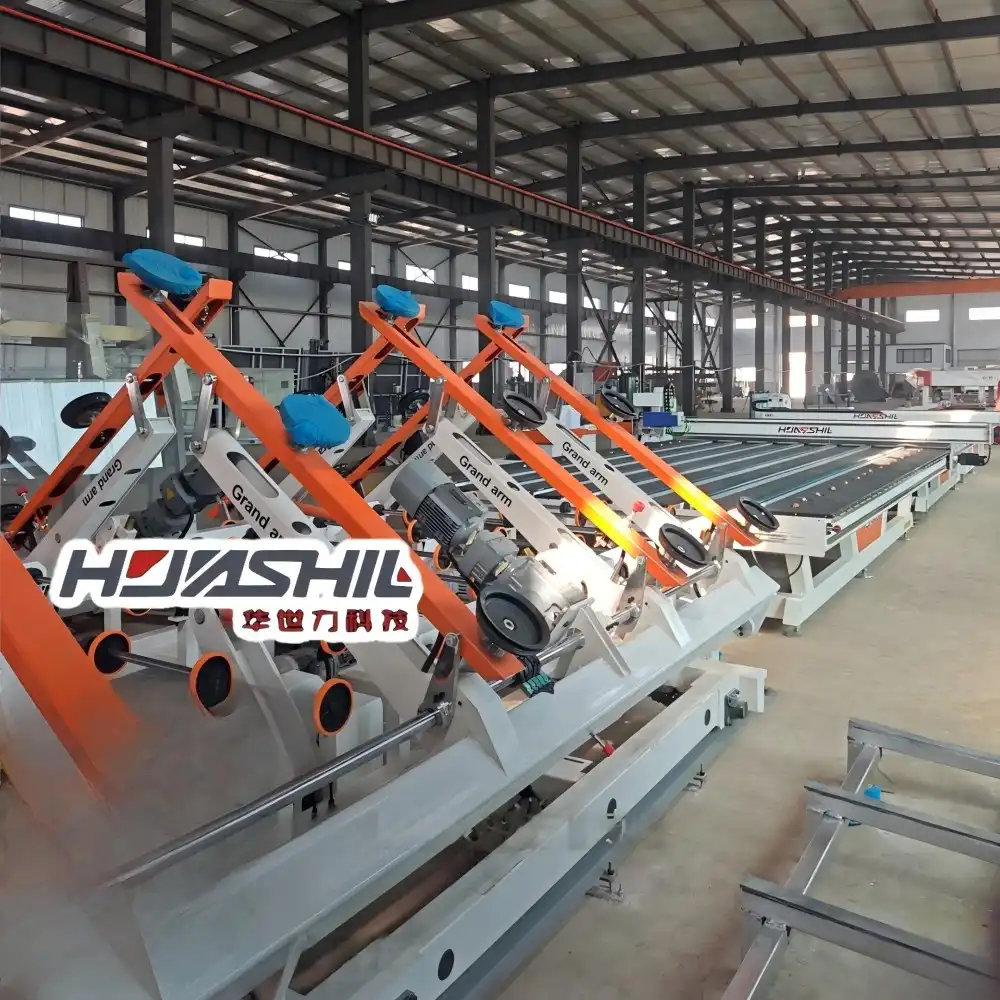

More advanced models have three perfectly aligned robotic arms that can automatically load. To lift, position, and put glass sheets on the air float surface, these arms move at the same time. The three-arm design makes it more stable and evens out the weight, which is especially important when working with big architectural glass pieces that are up to 3660 x 2440 mm.

Each robotic arm on the Air Float Glass Loading Table has vacuum suction cups that are made to hold glass in place. The arms move along tracks that have already been planned out. This makes sure that the setting is always accurate within ±1mm. This technology cuts down on the amount of work that needs to be done by hand while still following strict safety rules during the packing process.

Key Benefits and Performance Advantages

With air float technology, businesses that handle glass are transformed for the better. Significant productivity increases are seen in manufacturing sites, along with decreases in material waste and injuries on the job.

Enhanced Operational Efficiency

The main reasons why air float systems are so useful in modern glass production are listed below:

• Less physical effort: Operators can move glass sheets that weigh several hundred kilos with little effort, which keeps them from getting tired and improves the quality of their work during long shifts.
• Higher Throughput: Compared to standard methods, loading times are cut by about 40–60%, which lets more products be made without hiring more workers.
• Accurate placing: The smooth surface lets you make small changes while placing, which is very important for tasks that need precise placement in automatic processing or cutting lines.
• 360-Degree Mobility: The table can be rotated 360 degrees, which lets you change the direction of the glass panels without taking them off. This makes it easier to move between working stations.

These increases in efficiency directly lead to lower operating costs and greater success in tough market conditions. Manufacturing companies say that they can get their money back in 12 to 18 months just by saving money on workers and making more things.

Comprehensive Safety Features

Many parts of professional air float devices are made with safety in mind. In case of an emergency, built-in emergency stops, pressure tracking systems, and automatic shutdown procedures will keep both workers and machinery safe. Anti-static treatments keep dust from building up, and edge guards keep people from touching moving parts by mistake.

The air cushion effect almost eliminates friction between the glass and the surface, which cuts the chance of breaking by up to 90% compared to traditional ways. This huge change in how long things last has a big effect on the economics of production, especially when working with expensive speciality glass goods.

Maintenance Excellence and Reliability

Due to the non-contact working theory, routine maintenance needs are kept to a minimum. The main upkeep jobs are replacing the air filter regularly and cleaning the nozzles. Diagnostic systems keep an eye on air pressure, flow rates, and the health of the system all the time. They give early warning signs of problems before they affect production.

When products are made well, they last longer than 15 years in normal workplace settings. Standardising components makes it easier to change them quickly when they need to be, which cuts down on downtime and keeps production plans on track.

Choosing the Right Air Float Glass Loading Table for Your Business

To choose the right air float tools, you need to carefully think about your production needs, the limitations of your building, and your long-term plans for growth. Knowing about these things helps buying teams make smart choices that give the best return on investment.

Critical Specification Considerations

The most important specification element of the Air Float Glass Loading Table is the load ability. Standard models can hold glass panels weighing between 50 kg and 2000 kg, while heavy-duty models can hold even more weight. The table's measurements must match the largest pieces of glass that can be processed. For building uses, the most common sizes are between 2500mm x 1800mm and 3660mm x 2440mm.

With customisation options, you can change things to fit the needs of your output. Modular designs let you change the size of the table, add special handling equipment, and connect them to robotic systems that are already in place. Leading makers offer a wide range of personalisation options, such as custom air nozzle designs, unique surface treatments, and control software that is designed to work with a particular application.

Supplier Evaluation and Partnership

A lot of what makes an application successful is the knowledge and help of the supplier. Well-known makers offer detailed technical documentation, supervision of installation, training for operators, and ongoing assistance for upkeep. Because air float devices are so specialised, the quality of the service provided after the sale is even more important.

Credentials for the supplier's manufacturing, quality approvals, and customer references can tell you a lot about how well they might work together in the long run. Companies with a lot of experience in the glass field usually have better application knowledge and tried-and-true answers for common problems that come up during implementation.

Installation and Workflow Integration

The best performance from equipment is achieved through proper installation and integration, which also ensures safe and effective operation. Professional installation teams follow standard processes that cover everything from getting the site ready to putting the system into service and teaching operators.

Site Preparation and Infrastructure Requirements

Before installation can begin, the spot must be carefully inspected and prepared. The most important infrastructure need is a reliable source of compressed air. Depending on the size of the table and the needs of the application, most setups need air compressors that can give 500 to 2000 cubic feet per minute at 80 to 120 PSI.

The electrical system has to be able to handle the power needs of the control system and the safety interlocks. Modern systems work perfectly with workplace automation networks, so tracking and collecting data on production can be done from afar. Verification of the floor loading capacity makes sure that the structure can support the weight of the tools and operating loads.

System Commissioning and Testing

Commissioning steps make sure that the air pressure is distributed correctly, that the control system works, and that the safety features work. The best pressure sets for different types and weights of glass are found through calibration methods. Performance testing makes sure that the factors for location accuracy, load capacity, and operating speed are correct.

Operator training programs make sure that equipment is used in a safe and effective way. Normal operation processes, basic maintenance chores, troubleshooting methods, and emergency reaction strategies are all covered in training. Lots of written information helps with ongoing training and practical reference needs.

Troubleshooting and Maximising Performance

Troubleshooting and speed improvements that work well can extend the life of equipment and keep it running at its best. Knowing about common problems and how to fix them helps repair teams deal with practical problems quickly.

Common Technical Challenges

Inconsistent air flow is the most common operating problem. Some of the reasons for this are dirty air filters, worn-out engine parts, or not enough supply capacity during times of high demand. These problems are taken care of before they affect output by keeping an eye on the pressure and planning preventative repairs.

Sensor calibration drift or electrical link problems on the Air Float Glass Loading Table are common causes of control system faults. Diagnostic systems today can find specific faults and walk you through the steps to fix them. Technical support teams for suppliers can help with complicated problems through secure network links when they can watch things from afar.

Performance Optimisation Strategies

Standardised working methods tell operators what settings work best for different types of glass and production situations. Key measures like cycle times, energy use, and repair intervals are tracked by performance tracking systems. This information helps with plans for machine upgrades and efforts to make things better all the time.

Performance checks done on a regular basis find ways to improve the process and make it more efficient. When workers, repair staff, and technical support teams from suppliers work together, equipment is used to its fullest potential for as long as it is working.

Conclusion

Innovative air float technology in Air Float Glass Loading Tables gets rid of surface touch and friction, which changes the way glass is handled. These systems are great for making building glass, car glass, and speciality glass because they have three-arm automatic loading systems, can move in any direction, and can be set up in any way you want, up to 3,660 x 2,440 mm. For modern production facilities, the big benefits, such as lower risks of human handling, higher throughput, and less glass damage, make them very appealing. The best performance and return on investment are achieved through careful selection, installation, and upkeep. This also helps with long-term output goals and operational excellence.

FAQ

Q1: What is the maximum glass size that can be handled?

Different sizes of glass can fit on Air Float Glass Loading Tables. The best types can handle panels up to 3660x2440mm. Custom designs allow for even bigger sizes, but only if the application needs them and the building has the space.

Q2: How does the automatic loading system work?

The three-arm automatic filling system uses robotic arms that work together and have vacuum suction cups on them. These arms work together to lift, position, and put glass sheets on the air float surface with an accuracy of within ±1mm, which means that a lot less work has to be done by hand.

Q3: What maintenance is required for optimal performance?

Regular upkeep checks the system pressure, replaces the air filter, and cleans the nozzles. Built-in troubleshooting systems keep an eye on performance factors and send out early warning signs for possible problems, so there is little downtime.

Q4: Can the system be customised for specific applications?

You can change the size of the table, add special handling equipment, make your own air jet patterns, and connect it to your current automation system. Leading makers give you a lot of ways to customise their products to meet your specific production needs.

Q5: What are the typical energy consumption levels?

How much energy it uses depends on the size of the table, the weight of the glasses, and how often it is used. Modern systems are made in ways that use less energy, make the best use of air pressure, and lower total operating costs compared to older ways of dealing.

Partner with HUASHIL for Premium Air Float Glass Loading Solutions

HUASHIL makes the cutting-edge Air Float Glass Loading Table, which changes the way glass is handled in a wide range of industrial settings. Our high-tech systems have three robotic arms that automatically load the glass, precise air floating systems, and the ability to accommodate glass sizes up to 3660x2440mm. They can also be fully customised and can walk in any direction. Shandong Huashil Automation Technology Co., Ltd. blends decades of manufacturing experience with cutting-edge engineering to offer dependable and effective solutions for use in car, architectural, and speciality glass. Get in touch with our technical sales team at salescathy@sdhuashil.com to talk about your unique needs and find out how our experience as a manufacturer of Air Float Glass Loading Tables can help you make more.
