Putting together an Air Float Glass Loading Table and CNC cuts is a huge step forward in modern glassmaking. It gives us unmatched accuracy, speed, and safety. This high-tech mix solves the most important problems that architectural glass fabricators, curtain wall installers, and furniture manufacturers in the US are having right now. When combined with computer-controlled cutting systems and frictionless Air Float Glass Loading Table technology, production facilities can greatly reduce glass damage, speed up work, and achieve uniform quality that can't be achieved with human handling alone. This detailed guide explains the technical basics, operational benefits, and strategic procurement issues that plant managers, engineering teams, and procurement professionals need to know in order to make smart investment choices that improve production lines and get the best return on investment.
Understanding Air Float Glass Loading Tables and Their Role in CNC Cutting

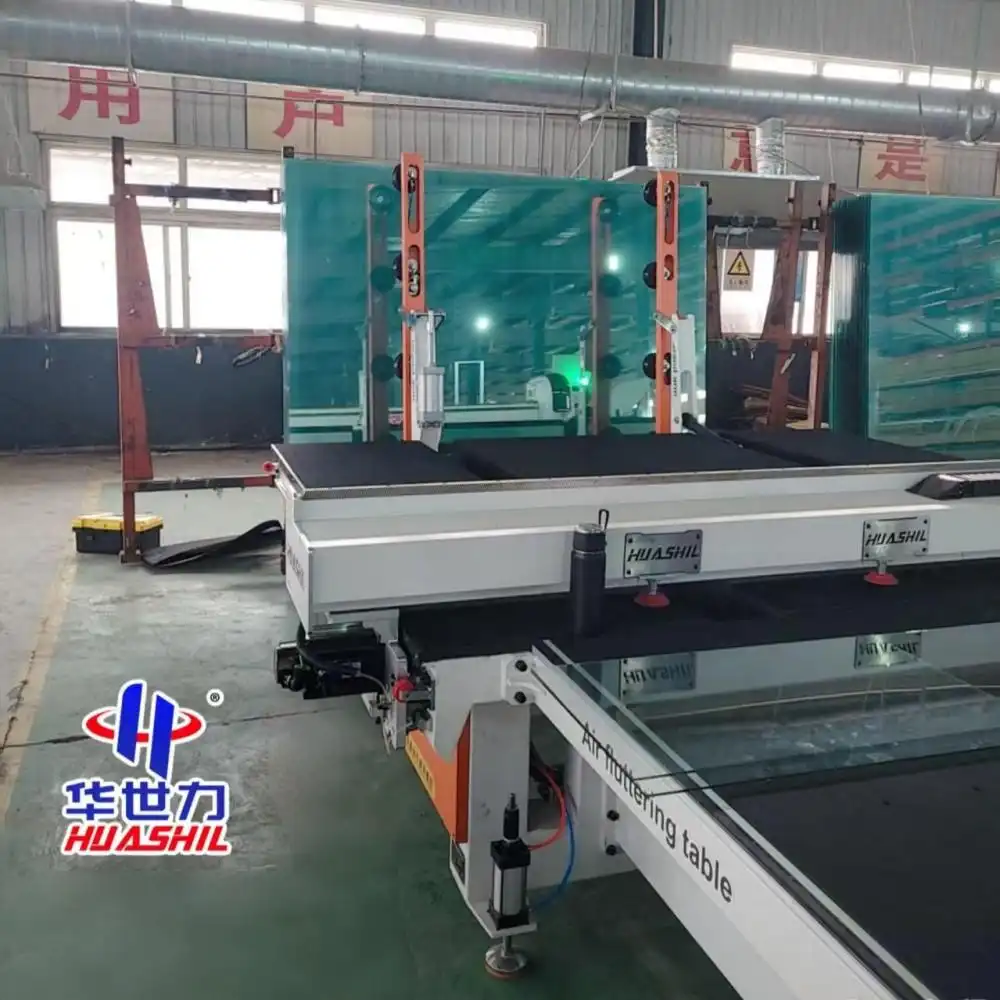

Air Float Glass Loading Table technology changes the way that glass sheets move through factories in a big way. Traditional roller conveyors make touch points and damage zones. Air Float Glass Loading Table systems, on the other hand, create a thin cushion of compressed air under the glass surface. This makes a surface with almost no friction, so even the thickest and thinnest glass sheets can slide across it without any problems. When we combine these systems with CNC cutting tools, the benefits are clear right away: automated positioning gets rid of mistakes made by hand, mechanical stress on glass edges goes away, and workflow hits levels that were not possible before.
Core Components of Air Flotation Systems
Modern Air Float Glass Loading Tables have complex methods for managing flows that change the pressure spread based on the size and weight of the glass. The open surface lets out controlled streams of air that keep the lift steady without any turbulence. At HUASHIL, our Air Float Glass Loading Table system has precision-engineered tubes that support the whole platform and make sure that glass sheets from 300 mm up to a maximum size of 3660 mm x 2440 mm are supported evenly. This technical skill is very important when working with architectural glass panels that will be used for curtain walls or big furniture parts that need to have perfect surfaces.
Automated Loading Capabilities
Adding three grand arms for automatic filling has changed the way that high-volume processes move materials. These automatic arms work perfectly with the Air Float Glass Loading Table platform to pick up sheets from racks and place them exactly where they need to be on the CNC cutting bed. Because it can walk in any direction, the system can get to multiple loading stations and cutting places without being limited by how the building is laid out. This adaptability is very helpful for factories that make a lot of different kinds of products, like shower door panels and car glass pieces, because quick changes have a direct effect on profits.
Benefits of Using Air Float Glass Loading Tables in CNC Glass Cutting Operations
Glass makers are always under pressure to speed up production processes and lower the number of breaks. Air Float Glass Loading Table technology makes both of these things better in a way that can be measured. Industry data shows that when facilities switch from roller systems to Air Float Glass Loading Table platforms, edge chips and surface scratches happen 40–60% less often during handling. These improvements in quality lead directly to lower costs for rework and better first-pass yield rates, which are measures that finance departments like when they are looking at investments in capital equipment.
Productivity and Throughput Enhancements
Cutting down on cycle time is another strong benefit. It takes two people about three to five minutes of traditional hand loading to safely place a big sheet of glass on a CNC cutter. With automated Air Float Glass Loading Table systems, the job can be done in less than 60 seconds by one person keeping an eye on several tools. This 70% time savings adds up over hundreds of daily rounds, which lets production heads meet tight delivery dates without adding shifts or floor space. It's especially important for curtain wall contractors who are working under tight building deadlines because every hour of cutting ability counts.
Operational Cost Comparison
Air Float Glass Loading Tables are better than other ways of moving things when we look at their total cost of ownership. Roller conveyor systems need to have their bearings replaced and their belts adjusted on a regular basis. This means that they have ongoing upkeep costs that add up over the life of the equipment. Air Float Glass Loading Table platforms have fewer wear parts and moving parts, so they need less upkeep and are less likely to break down without warning. Air systems also use less energy than motorized roller networks that cover the same distances. This is because current compressor technology provides the needed airflow with surprisingly low power draws. Within 18 to 24 months of running, these operational savings usually cover the higher starting equipment cost.
Choosing the Right Air Float Glass Loading Table for CNC Integration
To choose the best Air Float Glass Loading Table, you need to carefully look at your production needs and the limitations of your building. Load capacity is the most important feature. Tables must be able to hold the heaviest glass that will be used in the current activities, plus enough extra space for future product growth. The table must be big enough to fit the biggest sheets that are usually handled. HUASHIL systems can be set up in ways that can handle 3,660 x 2,440 mm building panels that are too big. When integrating with current CNC equipment, customization choices are important because mounting heights, power connections, and control system ports need to be exactly right for the cutter.
Evaluating Supplier Capabilities
Choosing the right source has a big effect on the success of integration and on long-term happiness. Having engineering help during the planning stage makes sure that Air Float Glass Loading Tables work well with CNC controls and other automated systems in the building. Technical teams should check to see if providers offer thorough CAD models, electrical diagrams, and programming documents that make installation go more smoothly. Infrastructure for after-sales support is very important. Having access to spare parts stocks, remote diagnostics, and quick field service reaction times can mean the difference between small changes and long production stops. To deal with these important procurement issues, Shandong HUASHIL Automation Technology keeps detailed technical data and helpful customer service lines.
Customization and Scalability
As a business grows and the market changes, so do its production needs. Being able to change how loading systems work to fit different workflows gives you a lot of freedom. Options that can be changed include adding on to the length of the table, setting up more than one filling arm, and connecting it to glass storage systems or packing lines further upstream or downstream. Plants that want to add capacity in stages should give priority to providers with flexible designs that let them add small amounts of capacity without having to replace whole systems. This scalability saves capital investments and makes long-term building planning easier for operations managers who are making equipment roadmaps for more than one year.
Operation, Maintenance, and Safety Guidelines for Integrated Systems
Integration is more than just installation; for operating success, you need structured processes and disciplined implementation. As part of the daily starting process, airflow should be checked across all table zones to make sure that pressure levels meet maker standards before glass is loaded. Operators need to be taught the right way to place glasses so that the weight is spread out evenly across the floating surface and there aren't any areas of high pressure that could weaken support. Pay close attention to how well the settings on the loading table and the code on the CNC cutter work together. If they don't, there is a chance of a collision, and the cycle will be held up longer than it needs to be.
Preventive Maintenance Protocols
Regular repair keeps systems running well and makes tools last longer. Air filter parts need to be checked and replaced on a regular basis to keep contamination from changing the way air flows. As part of the cleaning process, dust buildup on open surfaces should be taken care of. This can block airflow and cause lift patterns to be uneven. Robotic loading arms are checked every three months to make sure that the accuracy of their mechanical setting stays within acceptable limits. This finds wear issues early on before they become quality issues. We suggest forming relationships with equipment providers that offer preventative maintenance plans and keep important replacement parts in stock nearby. This will cut down on the time it takes to get replacement parts when they are needed.
Safety Considerations and Compliance
People's safety is still the most important thing in any automatic production setting. Emergency stop systems must be placed around filling tables in a way that allows operators from all places to see them. Guarding around the travel paths of the robotic arm keeps people from touching the arm by mistake during automatic cycles while still allowing access for loading glass. Safety interlocks should stop the CNC cutter from working while the loading arms are still moving or the glass hasn't been placed properly. Following OSHA machine guarding standards and ANSI equipment safety specifications keeps workers and managers from being sued and creates a professional work environment that draws and keeps skilled technical staff.
Future Trends and Innovations in Air Float Glass Loading Table Technology
As technology changes, it changes how glass can be processed. The combination of smart sensors now makes it possible to track the position of the glass in real time, spotting moves as small as one microsecond that could point to problems with flotation before they become quality issues. Predictive maintenance algorithms look at data from Air Float Glass Loading Table sensors and performance measures of compressors to predict when parts will break weeks in advance. This way, parts can be replaced on time during planned downtime instead of having to be fixed quickly during production runs. IoT connection connects loading tables to corporate manufacturing execution systems. This lets production directors see usage rates, cycle times, and quality measures that help them make decisions about how to keep improving.
Sustainability and Energy Efficiency
As companies respond to customer demands for sustainability and corporate responsibility promises, environmental responsibility plays a bigger role in choosing capital equipment. Next-generation Air Float Glass Loading Table systems have variable-speed blowers that change output based on the glass load. This gets rid of the energy loss that comes with fixed-speed designs that run at full capacity all the time. Robotic loading arms have regenerative stopping systems that use slowdown cycles to collect kinetic energy and feed it back into the building's power systems. These improvements in efficiency cut down on costs while also supporting sustainability reporting and environmental certification programs that help a brand's image with customers who care about the environment.
Strategic Investment Considerations
Adopting modern Air Float Glass Loading Table technology gives glass makers an edge in markets that are becoming more demanding. When you combine better quality, higher productivity, and lower operating costs, you get a strong financial case that budget approvers who are weighing different capital allocation goals can understand. Partnerships with innovative automation providers offer more than just short-term business benefits. They also give you access to new technologies and industry knowledge that help you make strategic decisions. When plants buy cutting-edge handling systems, they show their customers—especially big architecture firms and building system integrators—that they have the technical know-how and quality promises to handle difficult projects with strict performance standards.
Conclusion
When the Air Float Glass Loading Table is combined with CNC cuts, the quality, safety, and speed of working with glass are all greatly improved. These systems solve the main problems that modern production facilities have, like how to handle delicate surfaces without causing friction and how to speed up cycle times by automating placement. The technology has clear value propositions for plant managers, engineering teams, and financial decision-makers looking at equipment investments. These benefits can be measured: less breakage, faster output, and lower running costs. As the glass-making industry moves toward more automation and sustainability, Air Float Glass Loading Table platforms not only make operations better right away, but they also set the industry up for long-term economic success in markets that are always changing.
FAQ
Q1: Can existing CNC cutting lines be retrofitted with air flotation systems?
Retrofit setups are good ways for many places to get better. The most important things to think about are the floor room next to the current cutters, the electricity service capacity for air compressors, and how well the new system will work with the old one. Most current CNC cutters have control connections on the outside that make merging easier. HUASHIL's engineering teams do site reviews to see if retrofitting is possible and then create unique integration plans that keep installation as smooth as possible.
Q2: What are typical lead times for air float table procurement and installation?
Standard configurations usually ship 6 to 8 weeks after the order is confirmed. Installation can take an extra 1 to 2 weeks, based on how ready the building is and how complicated the customization is. Full production line projects with many tools and custom engineering take 3 to 6 months longer because they have to fit in with building dates and phased testing plans that manufacturing clients need.
Q3: How do air float systems improve workplace safety compared to manual handling?
Getting rid of the need to lift big glass sheets by hand takes away the main risk of getting hurt in glass fabrication plants. When placement is automated, operators are closer to cutting tools during operation cycles. Controlled, expected movement patterns in Air Float Glass Loading Table handling keep you from having to deal with the sudden changes and balance problems that come up when you move things by hand, which often lead to accidents.
Transform Your Glass Processing with HUASHIL Air Float Technology
HUASHIL offers tried-and-true automation systems that are designed to work in tough glass fabrication settings. Our Air Float Glass Loading Table systems have precise air float platforms and smart robotic loading arms. They can hold glass panels up to 3660mm x 2440mm and can be easily customized to meet your production needs. HUASHIL is ready to help you get the most out of your CNC cutting operations with full engineering support, quick technical service, and decades of experience in manufacturing. Production leaders looking for dependable Air Float Glass Loading Table makers will find that our advanced technology, low prices, and service that focuses on the customer make us the perfect partner for automation projects that go well. Email our technical team at salescathy@sdhuashil.com to talk about your unique needs and get full specifications that are made to fit your production goals.
